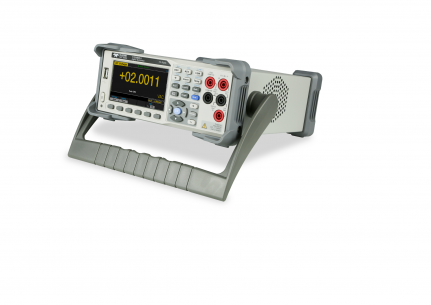

Teledyne Test Tools Digital-Multimeter T3DMM4-5

Key Features

• 4.5 digit (60,000 count)

• Math functions include: Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter etc.
• True RMS AC Voltage and Current Measurements.
• Support for remote control operation.

Main Features and Functions of the T3DMM4-5

• Real 4½ digit (60,000 counts) readings resolution
• Up to 150 rdgs/s measurement speed
• True-RMS AC Voltage and AC Current measuring
• 1 Gb NAND flash size, Mass storage configuration files and data files
• Built-in cold terminal compensation for thermocouple
• Standard interface: USB Device, USB Host, LAN
• DC Voltage: 600 mV ~ 1000 V
• DC Current: 600 μA ~ 10 A
• AC Voltage: True-RMS, 600 mV ~ 750 V
• AC Current: True-RMS,60 mA ~ 10 A
• 2/4-Wire Resistance: 600 Ω ~ 100 MΩ
• Capacitance: 2 nF ~ 10000 μF
• Continuity Test: Rang e is fixed at 2 kΩ
• Diode Test: Adjustable range is 0~4 V.
• Period Measurement: 2 μs ~ 0.05 s
• Temperature: Support for TC and RTD sensor
• Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail

Das folgende Zubehör ist im Lieferumfang dabei:

Two Test Leads, Two Alligator Clips
A USB Cable
A Quick Start
A Calibration Certificate
Power Cord

Folgende Komponente ist optional erhältlich:

T3DMM-LEAD   T3DMM pair of multimeter pen test leads (1000V)
