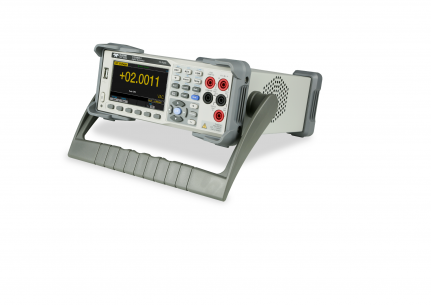

Teledyne Test Tools Digital-Multimeter T3DMM6-5

Key Features

• 6.5 digit (2,200,000 count)

• Math functions include: Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter etc.
• True RMS AC Voltage and Current Measurements.
• Support for remote control operation.

Main Features and Functions of the T3DMM6-5

• 4.3” TFT-LCD, 480*272
• Real 6½ digits readings resolution (2,200,000 counts)
• True-RMS AC Voltage and AC Current measuring
• File management (support for U-disc and local storage)
• Built-in cold terminal compensation for thermocouple
• Standard interfaces: USB Device, USB Host, LAN
• Built-in Hlep system makes information acquisition easier
• Support remote control operation via SCPI commands.
• Supports intelligent management system for laboratory based on BS framework and LAN.
• DC Voltage: 200 mV - 1000 V
• DC Current: 200 μA - 10 A
• AC Voltage: True-RMS, 200 mV - 750 V
• AC Current: True-RMS, 200 μA - 10 A
• 2/4-Wire Resistance: 200Ω - 100 MΩ
• Capacitance: 2 nF - 100 mF
• Diode Test: Adjustable range is 0 - 4V.
• Frequency Measurement: 3 Hz - 1 MHz
• Period Measurement: 1 μs - 333.33 ms
• Temperature: Support for TC and RTD sensors

Das folgende Zubehör ist im Lieferumfang dabei:

Two Test Leads, Two Alligator Clips
A USB Cable
A Quick Start
A Calibration Certificate
Power Cord

Folgende Komponente ist optional erhältlich:

T3DMM-LEAD   T3DMM pair of multimeter pen test leads (1000V)
